Mains pump

TRANSFER PUMP – DIESEL/NON-VEHICLE DIESEL

Flow rate 56 L/min

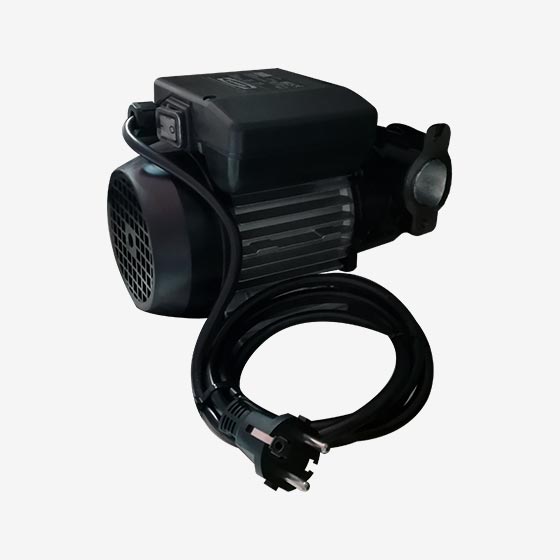

The PT56M pump can be used to distribute Diesel and non-vehicle diesel. It is connected to the mains only.

Its compact space requirement allows it to be easily built into our TransCube and Abbi transport tanks.

More information

Standard equipment

Single-phase motor (protection rating IP55 as per EN60034-5-86) self-ventilated directly clamped to the pump casing
Rotary self-priming vane pump, equipped with a by-pass relief valve
Cable with mains plug (1 m)
Bellows strainer at the inlet

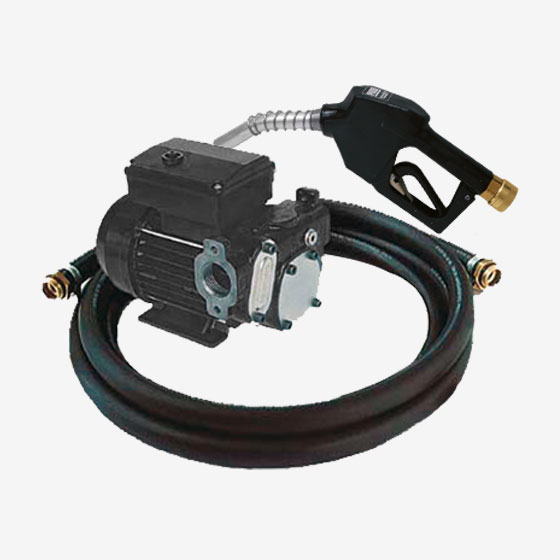

Available as a kit with 4 meters of hose and automatic gun (KITPT56MA)

Available as a kit with 4 meters of hose and automatic gun (KITPT56MA)

The PT56M pump can be used to transfer Diesel and non-vehicle diesel. It has a flow rate of up to 56 L/min (at the pump outlet).

The pump connects to themains. Motor power and intensity: 220 V

The PT56M is suitable for continuous use and has motor protection in case of overload (do not run empty for more than one minute).

Weight: about 7 kg

Complies with the Machinery Directive 2006/42/EC, Electromagnetic Compatibility 2014/30/EU and Low Voltage Directive 2014/35/EU
