cuve-stockage-adblue-envirocube

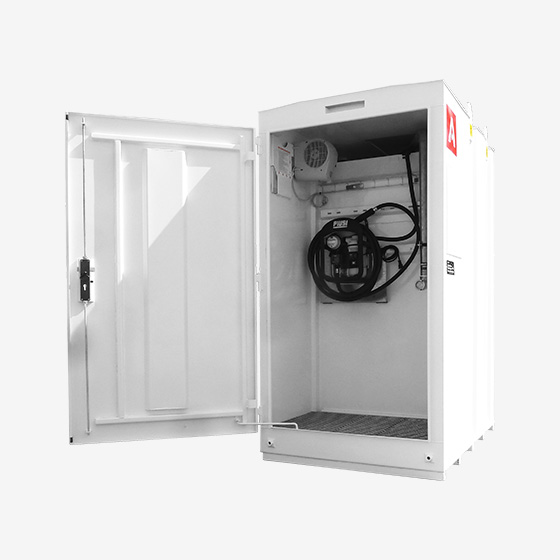

EnviroCube Blue

ABDLUE STORAGE TANK

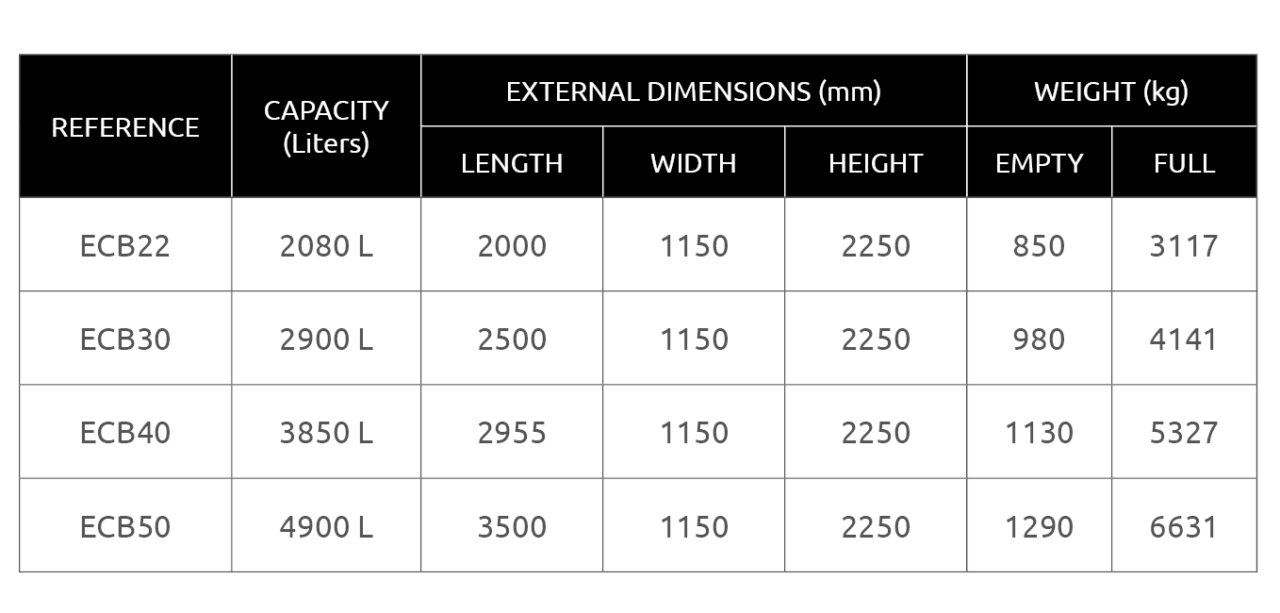

Available from 2080 to 4900 L

The EnviroCube Blue is specially designed for AdBlue storage. It is made of double-walled steel, with a special corrosion-resistant AdBlue coating.

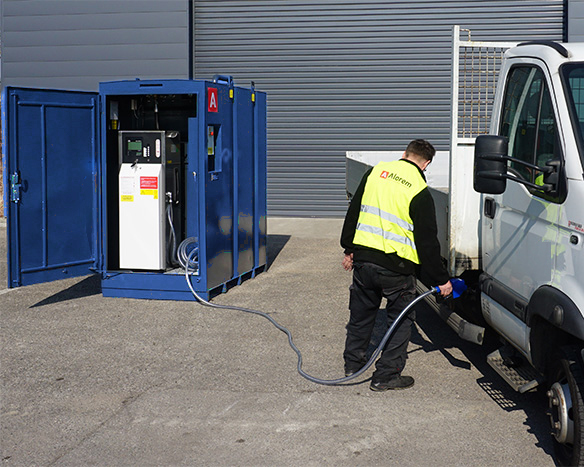

This above ground tank will allow you to top up your vehicles and equipment directly on site. Delivered ready to use, it is very easy to install and use.

  • Norme BS799 -5
More information

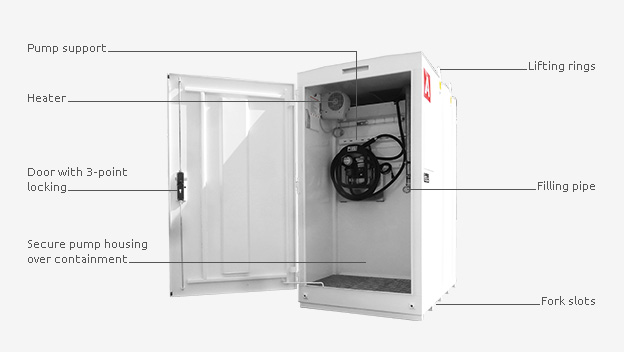

Standard equipment



The EnviroCube Blue is composed of:

  • Fork openings on the 2 sides
  • 4 lifting rings (empty lifting only)
  • 1 secure pump housing, over containment
  • 1 large door with 3-point locking at the front
  • 1 internal tank access
  • 1 remote 2” filling with stainless steel quick coupling
  • 1 leak detector
  • 1 document holder
  • 1 pump support and 1 distributor support on a stand
  • 1 heater in the pump housing
  • 1 mechanical gauge with dial
  • 1 vent: internal tank
  • 1 filling limiter

Specifications

The EnviroCube Blue is a static tank designed for the storage of AdBlue. Thanks to an anti-corrosive coating applied inside the inner tank, you can benefit from a very strong steel tank. Its 100% containment of the total volume prevents any risk of release in the event of a leak. The EnviroCube Blue is equipped with a secure pump housing over containment, the equipment and accessories are therefore easy to access.

The standard tank is white and can be customised on request with your company’s colours.



Approval

Built to BS799 Part 5: 2010 standards
